Tumbler separator

  • Diameter of screen(mm): 600-2600
  • Sieving precision(mesh): ≤300
  • Power(KW): 0.25-5.5
  • Layer: 1-5
  • Price(USD): 5000-30000
  • tumbler-screen-2
  • tumbler-screen-3
  • tumbler-screen-4
  • tumbler-screen-6
■ Specifications
Attention1:
This tumbler separator can be manufactured as customers' need because of some high precision sieving.
Attention2:
The tumbler separator also be called as other name in different country, for example, sometimes will also named it as rocking sieve; tumbler screen; tumbler screener and so on.
Distinctive features:
1. Amazing capacity: This machine can produce nonlinear three-D movement, five times output per unit area than other simple vibrating screen.
2. Multilevel screening: This machine can be installed 5 layers screen cloth, reach to 6 stages separation, the screening efficiency can be up to 90%-95%.
3. Less abrasion: 4.5 times acceleration lower than other general vibrating screen, some screen parts’ life raised up and maintenance reduced.
4. Strong cleaning: Self-clean device is installed on the machine, as following type: ultrasonic self-clean device; rubber balls self-clean device; rotary brush self-clean device.
5. Environmental operation: Totally enclosed design, no dust fly, safe in operation; the noise is less than 75db, silent when working.

Application industries:
1. Chemical industry: resin pigment, grease, paint, palette, etc.
2. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid, waste water reclamation, etc.
5. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, gravel, etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material, metal powder, etc.

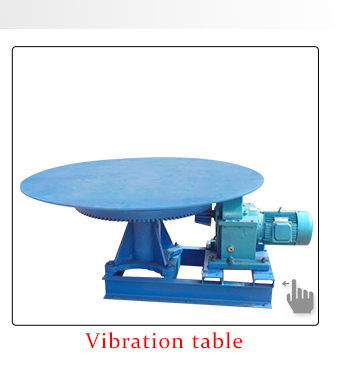

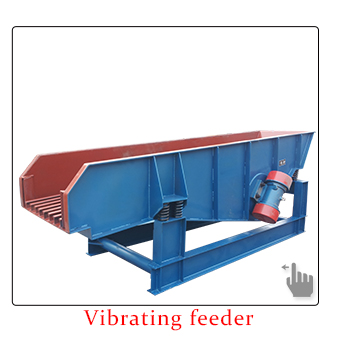

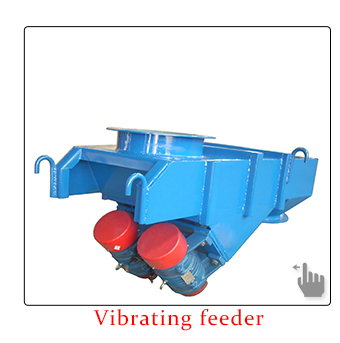

Related equipment:

■ Technical Data
Model Diameter(mm) Screening surface(m²) Layer Power
DYB-600 600 0.292 1-5 0.25
DYB-1000 1000 0.785 1-5 1.5
DYB-1200 1200 1.13 1-5 2.2
DYB-1600 1600 1.83 1-5 3
DYB-2000 2000 2.63 1-5 4.0
DYB-2400 2400 4.52 1-5 5.5
DYB-2600 2600 5.31 1-5 5.5
