From West Room 5, 1st Floor, Building 18, Huilong Yangguang Mingyuan, New District, Xinxiang, Henan, China (Mainland). ■ Specifications

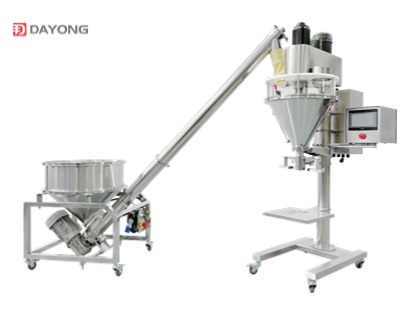

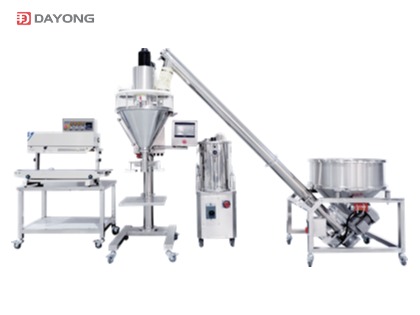

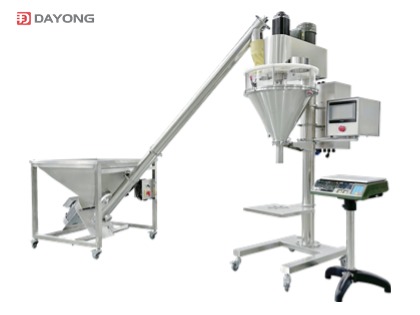

This type of auger filler can do measuring and filling work. Due to the special professional design, it is suitable for the fluidic or low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
Stainless steel structure, Contact parts SS304
Include hand-wheel of adjustable height.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Stainless steel structure, Contact parts SS304
Include hand-wheel of adjustable height.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Features
1. Stainless steel structure; Quick disconnecting or split hopper could be washed easily without tolls.
2. servo motor drive.
3. Fill by weight system with high accuracy and high speed.
4. Replacing the auger parts, it is suitable for material from powder to granule. The machine can
be customized.Suitable for the quantitative packaging of flour, milk powder, protein powder,
yeast, coffee, powder granular additives, enzyme preparations, solid medicine, carbon powder,
talcum powder, fuel, flavor and fragrance,five-spice powder, pesticide, veterinary medicine,
chemical agent, food seasoning, laundry powder, and other solid materials.
2. servo motor drive.
3. Fill by weight system with high accuracy and high speed.
4. Replacing the auger parts, it is suitable for material from powder to granule. The machine can
be customized.Suitable for the quantitative packaging of flour, milk powder, protein powder,
yeast, coffee, powder granular additives, enzyme preparations, solid medicine, carbon powder,
talcum powder, fuel, flavor and fragrance,five-spice powder, pesticide, veterinary medicine,
chemical agent, food seasoning, laundry powder, and other solid materials.
■ Technical Data
| Filling Range | 2g-5kg |
| Measurement | Volume/Weighing |
| Speed | 1200-3500bags/h |
| Accuracy | ≤1% |
| Voltage | AC380V/220V/110V |
| Power | 1.5KW |
Screw conveyor parameters
| Model | LS108 | LS114 | LS133 | LS159 | LS219 | LS273 | LS325 | LS426 |
| Diameter of screw(mm） | 108 | 114 | 133 | 159 | 219 | 273 | 325 | 426 |
| Speed of main shaft(r/min) | 190 | 190 | 190 | 112 | 100 | 90 | 80 | 71 |
| Screw picth(mm) | 108 | 114 | 133 | 159 | 219 | 273 | 325 | 426 |
| Max capacity (t/h) | 1 | 2 | 4 | 8 | 15 | 20 | 20 | 20 |
| Max conveying length(m) | 8 | 10 | 12 | 15 | 18 | 25 | 25 | 25 |
| Working angle(degree) | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 |
