The Features of Laminate High Frequency Stack Sizer

The Features of Laminate High Frequency Stack Sizer

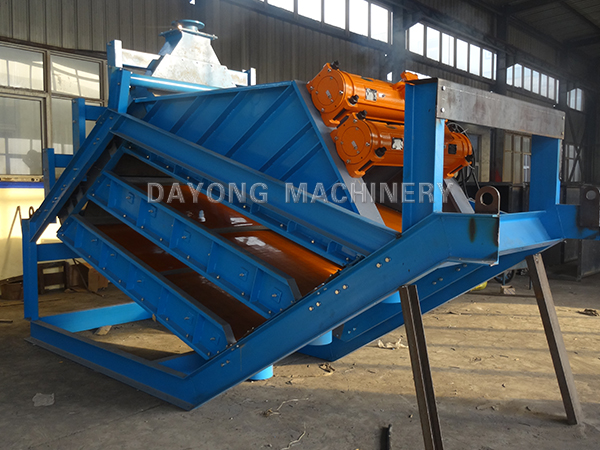

Xinxiang Dayong producing laminate high frequency stack sizer is a equipment for dewatering and grading material with high frequency and low amplitude, large vibration intensity, light weight, stable and reliable operation, large handling capacity, suitable for the grading and dewatering fine coal and the recovery of coal mud.

It using two motors by the tape coupling to separately drive two vibrators for synchronous reverse operation, centrifugal force generated by two eccentric blocks along the vibration direction, then the force component of centrifugal force always cancel each other out, form a single exciting force along the vibration direction, and the screen box and horizontal plane form a reciprocating linear vibration in the direction of 50 angle. Under the role of exciting force, materials on the screen surface do continuously oblique throwing motion, then under the high vibration intensity, after throwing, the collision of materials and screen surface destroy the surface tension of the outer water film of particle, achieve the purpose of solid-liquid separation.

High frequency stack sizer , no sealing device, but relatively wide screening range, can suit for screening particle and powder, at the same time can be also used in the filtration and dewatering of slurry, paint, coal mud and other sticky materials, low noise, high efficiency, low energy consumption.
